Beyond the Key: A Decision-Maker's Guide to Locking Mechanisms
Published: Oct 2, 2025
Choosing a lock can feel like a simple task, but if you're responsible for securing a property, you know the real decision goes deeper than just the key's shape. You're evaluating the engineering that stands between your assets and a potential threat. To make a confident investment, you need to understand not just what a lock does, but _how_ it works.
This guide moves past the surface level, breaking down the core mechanics of the most common locking systems. We'll explore the internal components, compare their strengths and weaknesses, and give you the framework to assess security solutions with the insight of a professional.

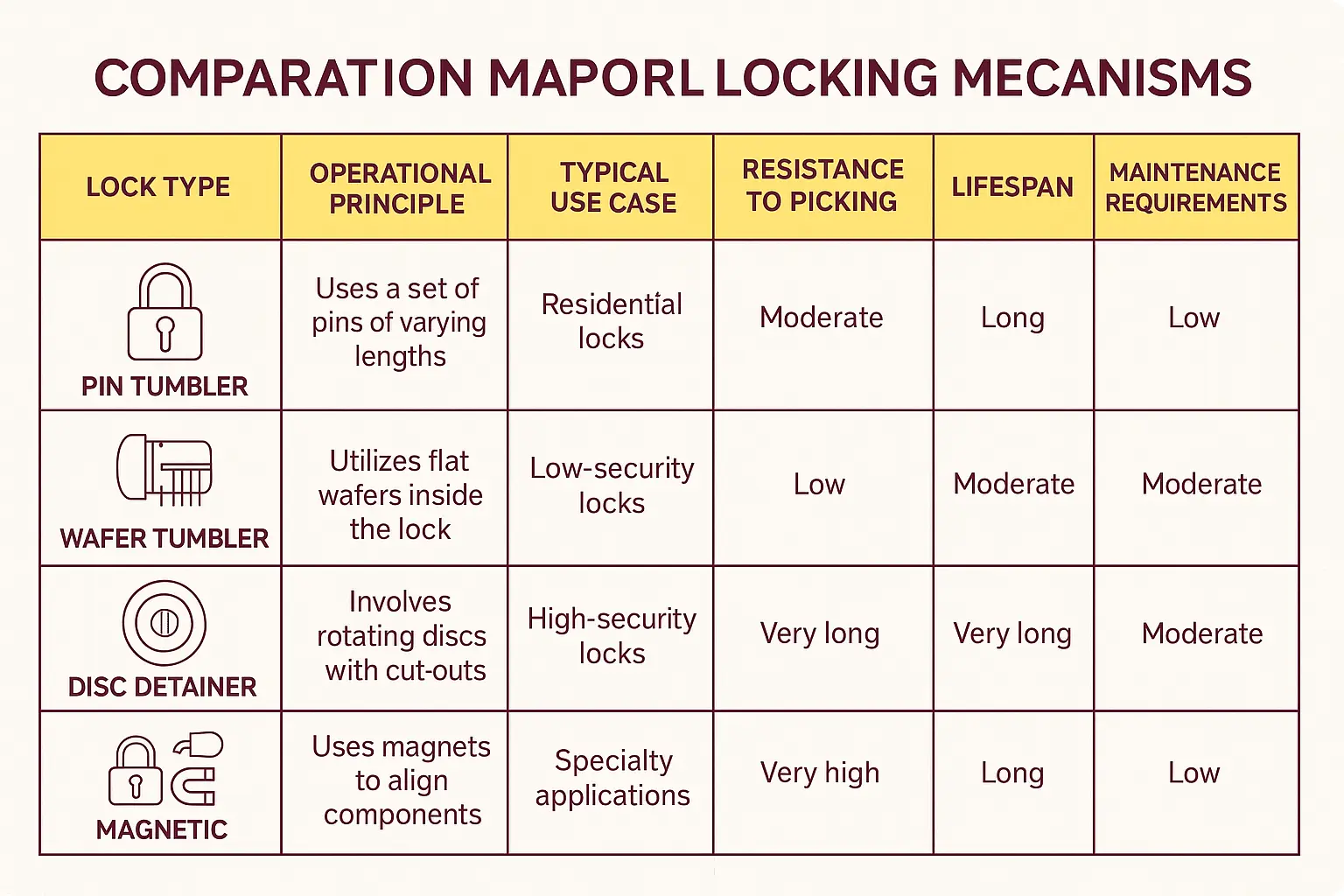

Types of Locking Mechanisms: A Comparative Overview
At its heart, a lock is a precision-engineered device. Yet, not all are created equal. The four primary types—pin tumbler, wafer tumbler, disc detainer, and magnetic—operate on fundamentally different principles, each offering distinct levels of security and suitability for different applications. Understanding these differences is the first step in aligning a lock's capabilities with your security goals.

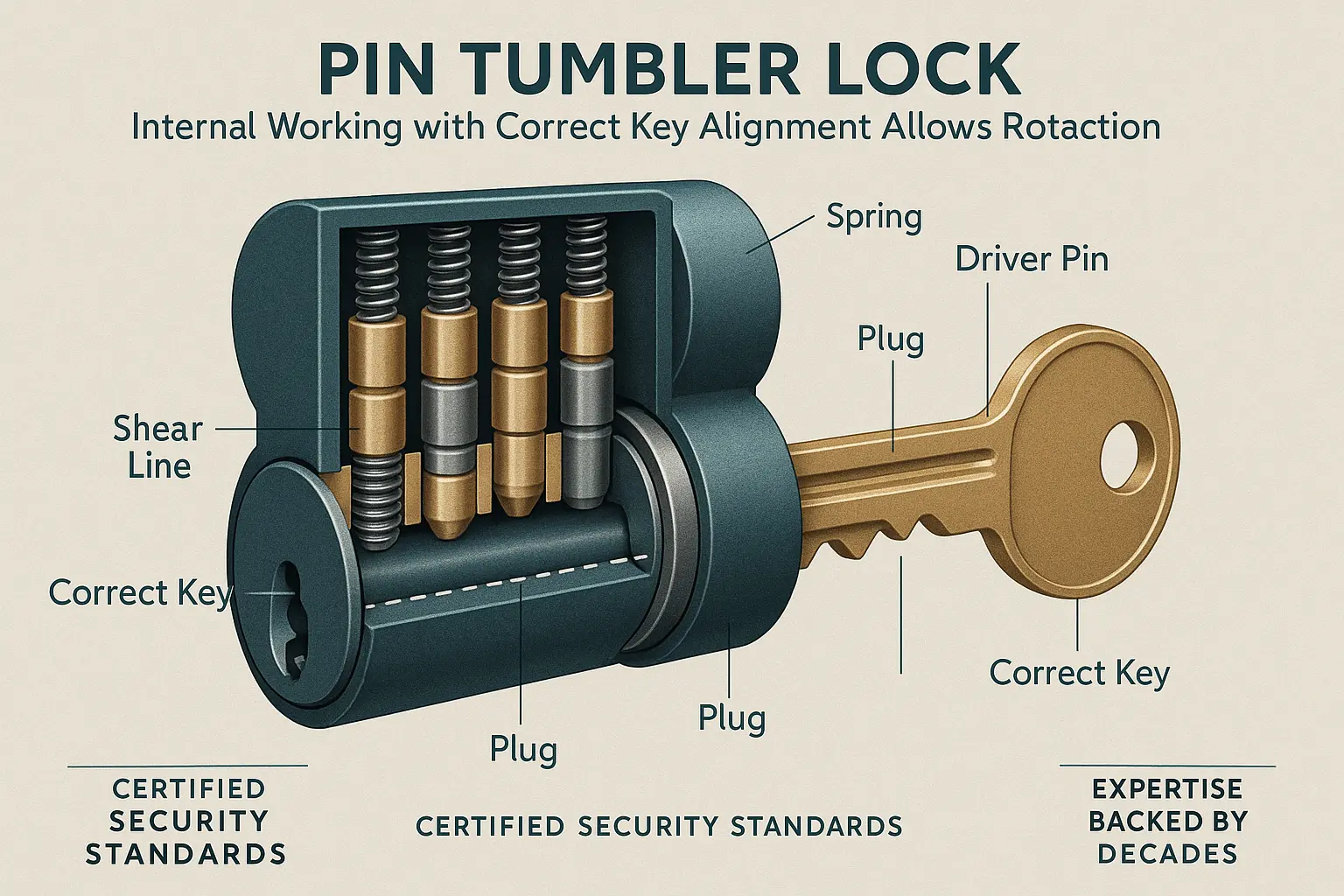

- The Workhorse of Residential Security: The Pin Tumbler Lock: If you have a lock on your front door, chances are it’s a pin tumbler. This mechanism is the industry standard, found in an estimated 70% of homes across the country due to its balance of security and cost-effectiveness. The genius of the pin tumbler is in its use of a shear line. Inside the lock's cylinder, there are several chambers, each containing a pair of pins: a key pin (bottom) and a driver pin (top), separated by a spring. When the correct key is inserted, its unique cuts lift each key pin to a specific height. This action perfectly aligns the gap between the key pins and driver pins along a single, unbroken "shear line." With the path cleared, the cylinder can turn, and the lock opens. The entire door lock mechanism relies on this precise alignment. However, its widespread use also makes it a common target. Standard pin tumbler locks can be vulnerable to manipulation techniques like lock picking and "bumping," where a specially cut key is used to momentarily create a shear line through kinetic force. To counter this, manufacturers have developed security pins, such as spool and serrated pins, which have irregular shapes designed to snag and provide false feedback, making unauthorized opening significantly more difficult.
Understanding Internal Components and Security Resistance
The security of any lock is a direct result of its internal design and the materials used in its construction. A lock with sloppy tolerances or weak components can fail, even if its design is theoretically sound. This is where professional-grade hardware and expert installation become critical. True security is built on precision engineering that anticipates and resists attempts at forced entry.
- The Wafer Tumbler Lock: Simplicity Over Security: Often found in desk drawers, filing cabinets, and older vehicles, the wafer lock is a simpler, more compact mechanism. Instead of pin pairs, it uses single, flat wafers held in place by small springs. When the correct key is inserted, it aligns all the wafers so they are flush within the cylinder, allowing it to turn. While effective for low-security applications, the simplicity of the wafer tumbler makes it far more susceptible to picking than a pin tumbler. Its design offers less resistance and can often be opened with basic tools, making it unsuitable for protecting high-value assets or securing primary entry points.
- The Disc Detainer Lock: A High-Security Alternative: For applications demanding superior protection, the disc detainer lock represents a significant step up in security. This mechanism does away with springs and pins entirely. Instead, it contains a series of slotted rotating discs. The key features angled cuts that rotate each disc to a specific position. When all discs are correctly aligned, their slots form a continuous channel for a sidebar to fall into, allowing the cylinder to rotate. The absence of springs makes these locks highly resistant to bumping, and their complex internal design makes them extremely difficult to pick. This engineering is why disc detainers are commonly used for safes, bike locks, and other high-security needs.
- The Magnetic Lock: Security Through Electromagnetism: A magnetic door lock, or maglock, operates on an entirely different principle. It uses a powerful electromagnet mounted on the door frame and a steel armature plate on the door itself. When energized, the magnet creates a strong bond with the plate, holding the door shut with forces ranging from 600 to over 1,200 pounds. Because they have no moving parts, maglocks are incredibly durable. They are controlled by an access control system and are often configured in one of two ways: - **Fail-Safe:** The lock disengages when power is cut, ensuring people can exit during an emergency. - **Fail-Secure:** The lock remains engaged without power, prioritizing security over egress. Their reliance on a constant power source and integration with access systems makes them a cornerstone of modern commercial security.
Choosing the Right Lock: Factors & Benefits
Selecting the right locking mechanism isn't about finding the "best" lock—it's about finding the _right_ lock for your specific environment and risk profile. By evaluating your options against a clear set of criteria, you can ensure your investment delivers the security you need.
- Key Evaluation Criteria: - **Security Grade:** The American National Standards Institute (ANSI) and Builders Hardware Manufacturers Association (BHMA) rate locks from Grade 1 (highest) to Grade 3. Grade 1 locks are built for heavy commercial use, withstanding extensive force and hundreds of thousands of cycles. - **Resistance to Tampering:** Consider the lock's ability to resist common attacks. Does it have security pins? Is the design inherently resistant to picking, like a disc detainer? Be aware of the signs your lock has been tampered with to identify potential vulnerabilities. - **Key Control:** How easily can your keys be duplicated? Many standard keys can be copied at any hardware store. Investing in high security locks often includes patented keys that can only be duplicated by an authorized locksmith with proper identification, giving you total control over who has access. - **Application & Environment:** A lock for a residential front door has different requirements than one for a server room or an exterior gate exposed to the elements. Material composition—such as solid brass or hardened steel—plays a vital role in durability and weather resistance.
Frequently Asked Questions About Locking Mechanisms
**What's the main difference between a Grade 1 and Grade 2 lock?**
The primary difference lies in durability and force resistance. A Grade 1 deadbolt must withstand 10 strikes of 75 foot-pounds of force and complete 250,000 cycles. A Grade 2 lock is tested for 5 strikes and 150,000 cycles. For a main entry point on a commercial property or a high-traffic residential door, Grade 1 is the professional standard.
**Are more pins in a pin tumbler lock always better?**
Not necessarily. While more pins can increase the number of possible key combinations, the quality of the pins, the precision of the cylinder's manufacturing, and the presence of security pins are far more important factors in resisting tampering. A well-made 5-pin lock with security pins is superior to a poorly-made 7-pin lock with standard pins.
**Can any lock be part of a master key system?**
Most pin tumbler and some disc detainer locks can be integrated into master key systems. This involves creating additional shear lines within the lock cylinder to allow different keys (e.g., individual office keys and a building-wide master key) to operate it. The complexity requires precise planning and pinning by a qualified locksmith.
**What is a thumb turn lock and is it secure?**
A thumb turn lock is a type of deadbolt that uses a knob on the interior side instead of a key. It offers convenient locking and unlocking from the inside. However, its security can be compromised if it's installed on a door with glass panels nearby, as an intruder could break the glass and simply turn the knob.
**What if I need to secure something more complex, like a safe?**
Safe locks use highly specialized mechanisms far beyond standard door hardware, including combination dials, electronic keypads, and high-security disc detainers. Due to their complexity and robust construction, determining if a locksmith can open a safe without the combination requires specialized tools and expertise.
Making a Confident Security Decision
Understanding the mechanics inside a lock empowers you to look past marketing claims and focus on the engineering that delivers real security. Whether you're protecting your family or your business, this knowledge is the foundation of a sound security strategy.
